Product Overview

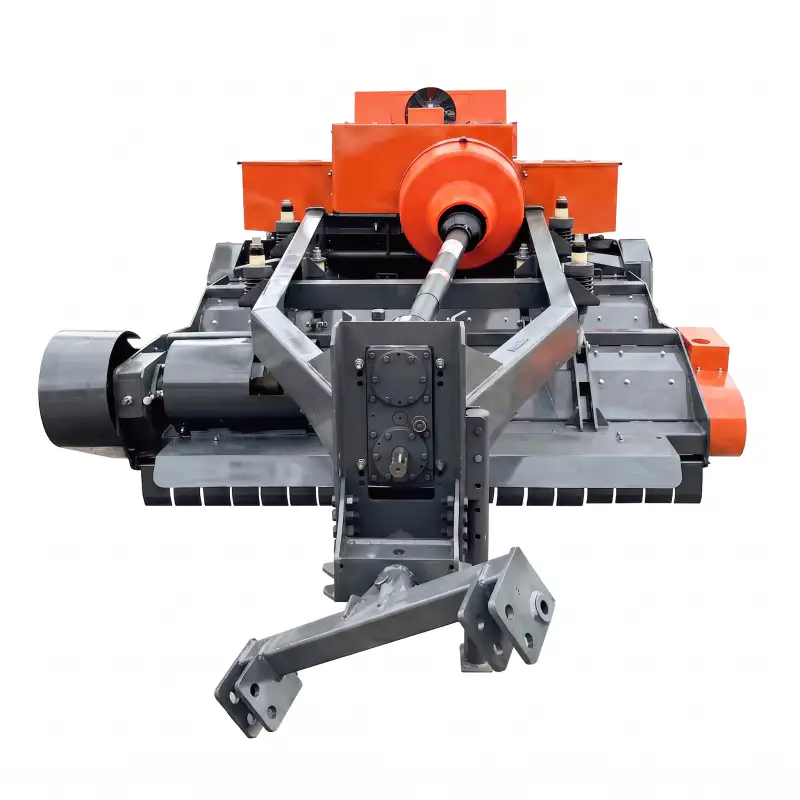

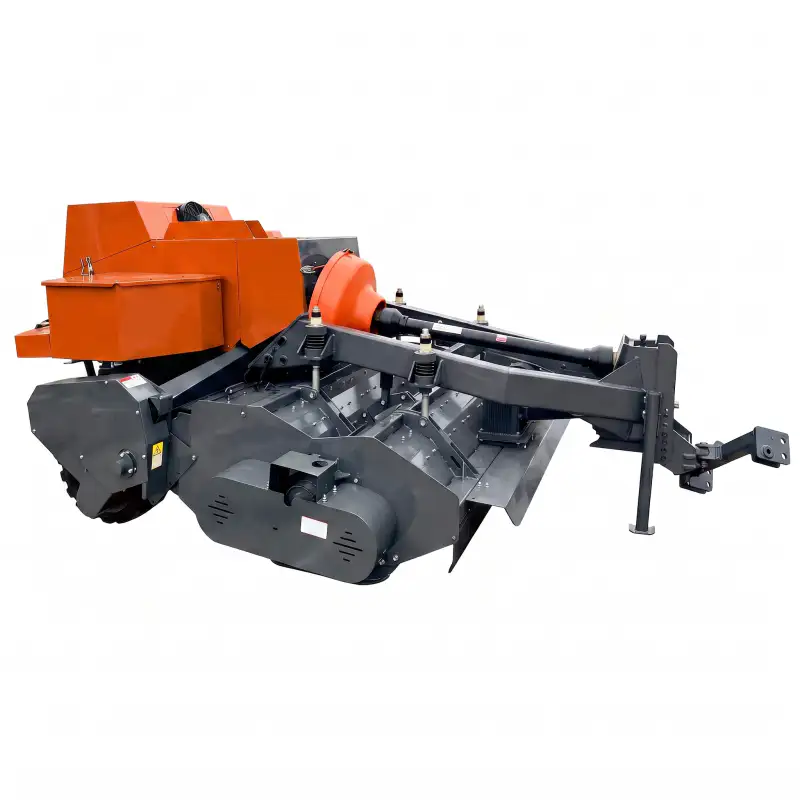

Introducing the ultimate solution for premium forage and crop residue management: the 9EP-2200S Pro Square Baler with Dual-Crushing and Dust Removal technology. This advanced towed-type machine goes beyond standard harvesting by incorporating a negative-pressure fan that actively extracts dust and sand from the windrow, vastly improving feed palatability and livestock health. Combined with a robust two-stage shredding mechanism, it effortlessly converts the toughest standing or lodged stalks into high-density, nutrient-rich rectangular bales.
At Ever Power, we engineer complete agricultural solutions rather than just standalone machines. To ensure your specialized shredding baler operates with flawless consistency, we proudly manufacture and supply heavily reinforced Riduttori per presse and precision-balanced Alberi di trasmissione tailored to handle extreme torque loads. Additionally, if your farm’s logistics require cylindrical bales for weather-resistant outdoor storage, we offer a premier lineup of Presse rotopresse, cementing our position as your definitive single-source agricultural equipment partner.
Specifiche tecniche
Review the specialized engineering parameters of the 9EP-2200S Pro model below:
| Specification Item | Parameter Detail |
|---|---|
| Nome del modello | 9EP-2200S Pro Square Baler (Dual Shredder & Fan) |
| Hitching Method | Trailed / Towed-type |
| Picking Width | 2200 mm |
| Picker Structure | Hammer-Claw Type |
| Struttura di alimentazione | Fork Feeding Mechanism |
| Special Mechanisms | Negative-Pressure Fan & Two-Stage Shredder |
| Knotter Type & Quantity | D Type / 2 pieces |
| Compression Chamber Size | 460 x 360 mm |
| Metodo di baling | Automatic Rope Baling |
| Matching Power Range | ≥ 73.5 kW |
| Overall Dimension (L x W x H) | 6500 x 2900 x 3360 mm |
| Peso della macchina | 2350 kg |
Working Principle & Structure
The operational sequence of the 9EP-2200S Pro is designed for maximum crop conditioning. It begins with the heavy-duty hammer-claw pickup, which aggressively tears into upright, lodged, or windrowed crop across a 2200 mm width. Immediately upon entering the header, the material passes through a two-stage crushing mechanism that thoroughly rubs and shreds woody stalks into pliable fibers.
Simultaneously, the integrated negative-pressure fan applies powerful suction to the material flow, effectively separating and discharging fine sand, dirt, and dust. The cleaned, shredded crop is then driven by the fork feeder into the 460 x 360 mm compression chamber. A heavy plunger rapidly packs the material into high-density blocks before the dual D-Type knotters securely tie the bale with twine, delivering a pristine, highly digestible bale to the field.
Core Advantages
🌪️ Negative-Pressure Dust Extraction
A specialized fan system actively vacuums dirt and silica out of the crop before baling, producing exceptionally clean forage that protects livestock respiratory health and digestion.
🔪 Two-Stage Shredding
Advanced dual-crushing rotors completely break down the rigid cellular structure of corn and sorghum stalks, drastically increasing bale density and structural stability.
🚜 Universal Crop Harvesting
The aggressive hammer-claw pickup ensures reliable harvesting of both standing and severely lodged crops, making it impossible for weather damage to ruin your harvest.
⚡ Heavy-Duty D-Type Knotters
Equipped with dual precision D-Type knotters that maintain perfect timing and secure, tight twine knots despite the dusty environment of high-speed shredding.
💎 Premium Nutrient Retention
By removing sand and increasing density, the bales produced are of significantly higher commercial value, easier to transport, and ready for direct TMR mixing.
Structure & Craftsmanship
The 9EP-2200S Pro boasts a commanding physical presence, measuring 3360 mm in height to accommodate the advanced dust extraction plumbing. The 2350 kg chassis is fabricated from high-yield structural steel, providing extreme torsional rigidity to manage the simultaneous vibrations of the high-speed fan, the dual-stage shredder, and the main compression plunger.
Delivering mechanical power to these three heavy-duty systems requires an uncompromising driveline. Ever Power outfits this model exclusively with our largest, thermally optimized Riduttori per presse and high-torque Alberi di trasmissione. Featuring integrated slip clutches and heavy-duty universal joints, this powertrain easily absorbs the extreme load fluctuations from the tractor (minimum 73.5 kW), preventing driveline failure and ensuring maximum field uptime.
Typical Applications
The 9EP-2200S Pro is purpose-built for the most demanding crop conditions:
- Premium Dairy Alfalfa: The dust removal fan extracts dirt from dry windrows, ensuring only the highest quality, clean forage reaches sensitive dairy cattle.
- Tough Corn & Sorghum Residue: The two-stage shredder obliterates thick stalks (at 10-23% moisture), turning rough field waste into highly compact, digestible feed.
- Post-Storm Recovery: Capable of reliably picking up and processing severely lodged or flattened crops that standard spring-tine balers cannot lift.
- Biomass Fuel Baling: Produces heavy, dirt-free bales of wheat and rice straw that burn cleaner in biomass energy facilities.
Selection Guide & Related Products
To safely power the fan, the dual shredder, and the compression plunger simultaneously, your tractor must output a minimum of 73.5 kW (approximately 100 HP) and possess sufficient mass to counteract the baler’s 2350 kg weight during transport and field operation.
Optimize Your Driveline with Ever Power
High-torque applications require specialized driveline components. Secure your harvest by standardizing your fleet with our engineered parts:
- 🚜 High-Capacity PTO Shafts: Calibrated with advanced slip clutches to instantly disconnect power if a large rock enters the shredder, saving your tractor’s transmission.
- ⚙️ Heavy-Duty Baler Gearboxes: Machined from hardened alloys and encased in ribbed cast iron for superior heat dissipation under extreme continuous loads.
- 🔲 Industrial Round Balers: Expand your harvesting versatility with our high-density Round Baler lineup, ideal for crops that require outdoor field storage.
Brand Comparison & Cross-Reference
The 9EP-2200S Pro is a highly specialized implement that brings premium dust-extraction technology to the market at a highly competitive price point compared to major OEMs.
| Specification / Feature | Ever Power 9EP-2200S Pro | OEM Brand K (Chop Series) | OEM Brand M (Stalk Series) |
|---|---|---|---|
| Conditioning Tech | Dual Shredder + Dust Fan | Pre-chopper Rotor Only | Flail Mower Only |
| Tipo di pickup | Hammer-Claw (All Crop) | Spring Tine (Clean Crop) | Flail (Standing Only) |
| Knotter System | Dual D-Type Knotters | Dual Heavy Duty | Dual Standard |
| Acquisition Cost | Outstanding ROI | Extremely High Premium | High Premium |
Quality Certification & Services
Your investment in heavy-duty machinery is secured by our stringent quality protocols and global customer support:
- Global Standards: Manufactured in facilities that strictly adhere to ISO 9001 and CE certifications, guaranteeing robust safety and reliability.
- Comprehensive Warranty: Backed by a 12-month global warranty covering the main structural frame, fan assembly, shredder housings, and primary gearboxes.
- Direct Spare Parts: As the primary manufacturer of the critical driveline (PTO shafts and gearboxes), we ship replacement parts and shredder knives worldwide within 48 hours.
- Expert Technical Support: Farm operators and dealers receive direct access to our engineering team for operational tuning, setup, and troubleshooting.
Case Studies: Voices from the Field
🇺🇸 California, USA – Large Scale Dairy Operation
“Our soil is very sandy, and dirt in the alfalfa was causing massive digestive issues in our herd. The dust removal fan on the 9EP-2200S Pro was a lifesaver. It literally vacuums the dirt out of the windrow. The D-Type knotters tie perfectly, and Ever Power’s PTO driveline runs incredibly smooth.”
🇩🇪 Saxony, Germany – Biomass Energy Supplier
“We need heavily compacted, dirt-free straw bales for the burners. The dual shredder breaks down the tough crop, and the fan removes the silica. Doing this all in one pass behind our 120 HP tractor has cut our fuel costs significantly compared to running a separate flail mower.”
🇦🇺 Queensland, Australia – Custom Harvesting Contractor
“After heavy storms, sorghum stalks get lodged flat and covered in mud. Standard balers just plug up. The hammer-claw pickup tears it off the ground, shreds it, and bales it without hesitation. We run Ever Power square and round balers exclusively now—their gearboxes simply don’t quit.”
Domande frequenti
Q1: How does the negative-pressure fan work?
A: The fan creates a powerful suction vacuum just behind the pickup reel. As the crop is tossed upward, the fan pulls lighter particles like fine dust, sand, and soil out of the crop flow and expels them away from the baler, leaving only clean forage to be compressed.
Q2: Why is a minimum of 73.5 kW (100 HP) required?
A: This machine operates three high-demand mechanical systems simultaneously: the dust extraction fan, the two-stage crushing rotor, and the main compression plunger. A minimum 100 HP tractor ensures the PTO RPM remains constant without stalling under heavy crop loads.
Q3: How do I select the right PTO shaft for this machine?
A: Due to the high torque and potential for sudden jams in the shredder, you must use an Ever Power heavy-duty PTO shaft equipped with a specialized slip clutch. Our team will match the exact shaft needed for your tractor’s PTO spline and speed.
Q4: Will the two-stage shredder destroy delicate alfalfa?
A: While the machine is highly aggressive on rigid stalks, it can be adjusted to process alfalfa. The shredding action simply creates a finer cut of hay, which is often highly desirable for direct incorporation into TMR (Total Mixed Ration) mixers without pre-grinding.
Q5: Are the hammer-claws replaceable?
A: Yes. The hammer-claws are made of hardened steel for maximum durability against rocks and soil, but they are individually bolted and can be easily replaced in the field when they eventually wear down.
Produce Cleaner, Denser Bales Today
Eliminate dirt from your feed and shred tough stalks in a single pass. Upgrade to the 9EP-2200S Pro and consolidate your equipment supply chain by choosing Ever Power for your Square Balers, Round Balers, Gearboxes, and PTO Shafts.
